Cable Lugs and Connectors

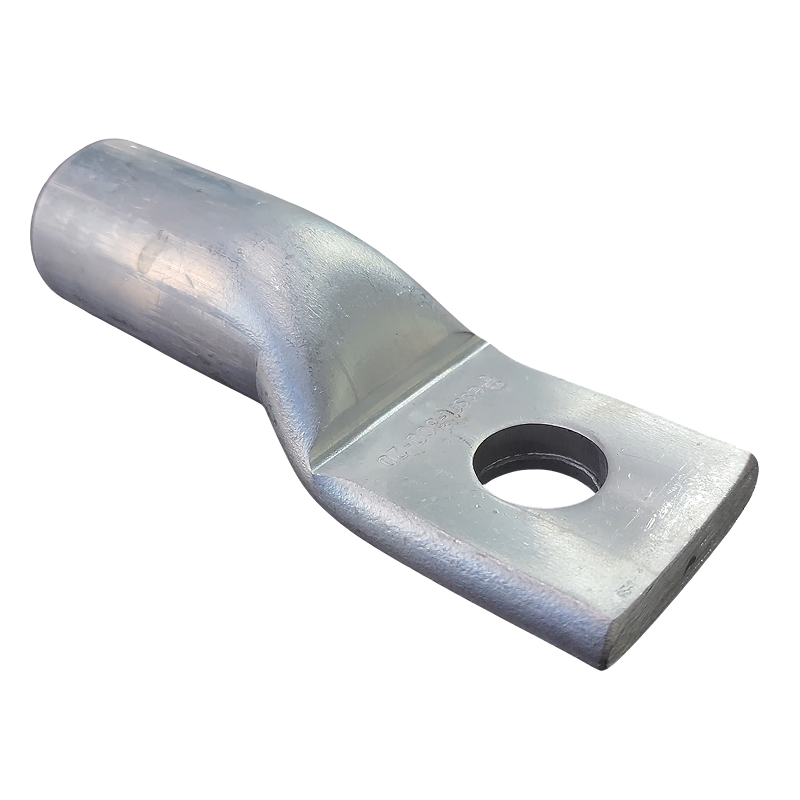

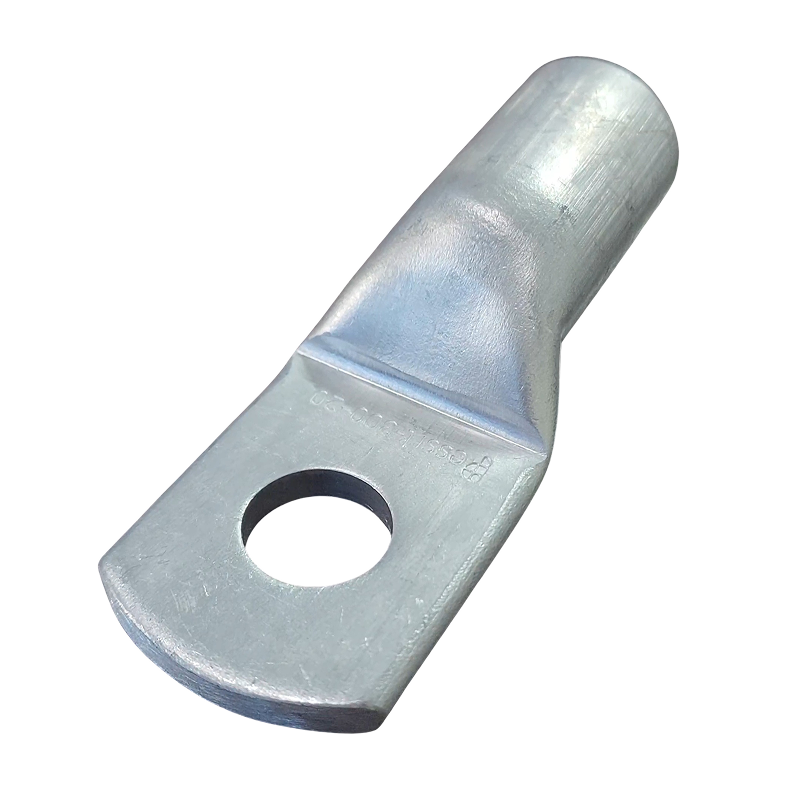

Aluminium Tubular Cable Lugs and Connectors
PESSRL Aluminium Tubular Lugs and Connectors are precision-engineered from high-conductivity EC Grade Aluminium, ensuring electrical conductivity of not less than 60% IACS. Designed in accordance with IS 8309:1993, these lugs are manufactured without inspection holes, effectively preventing moisture ingress into crimped joints — making them exceptionally suited for outdoor installations and harsh environments.
Technical Data
- Material: EC Grade Aluminium
- Conductor Size Range: 1.5 mm² to 1000 mm²
- Standard Compliance: IS 8309:1993
- Rated Voltage: 11 kV to 33 kV
- Design Feature: Barrel without inspection hole
- Finish: Natural or Electro-Tinned (Optional)
- Crimp Type: Compression (Tubular Design)
